- Size: 16
- Place of Origin: Shandong
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: WDR
- Weight: 580.000 kg
Product features:

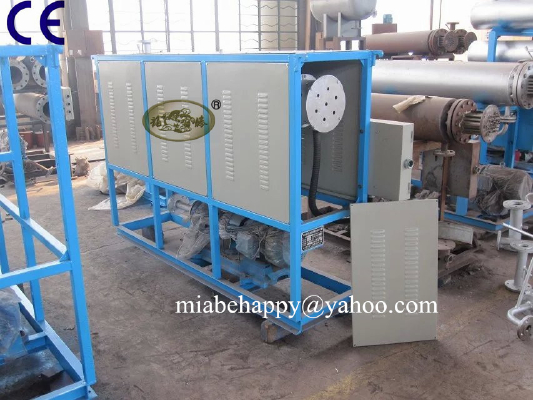

(1)The Thermal Oil Heater can provide higher process temperature (≤300 degree)under lower pressure to replace the high and medium pressure boiler to heat.Compared with the steam boiler, the electric heating boiler needs lowerpressure, which will greatly increase security, improve the workingenvironment, reduce labor intensity and the one-time investment and have nopollution.It has the sensitive electronic automatic temperature control systemto provide reliable high precision, uniform heat transfer and good processperformance.
(2)The Thermal Oil Heater has compact structure, small size, light weight,small footprint and simple installation.It is the new generation of heatingequipment in modern light industry, chemical and other industries.
(3) Its temperature regulation is accuracy and reliable, equipped withtemperature, liquid level, the security alarm device.
(4)It has high thermal efficiency (≥90%).
2.2 Uses:
This series of Thermal Oil Heater can be used in the following industries:
(1)Petroleum and chemical industry: polymerization, condensation, distillation,dehydrogenation, forced insulation.
(2)Oil industry: fatty acid distillation, oil decomposition, concentration,esterification, vacuum deodorization.
(3)Timber industry: multi-plywood, fiberboard, hot press molding, wood drying.
(4)Building materials industry: gypsum board drying, asphalt heating.
(5)Textile industry: heat setting,drying, hot melt dyeing.
(6) Food industry: baking bread, biscuits.
(7)Plastics and rubber industry: calendering, extrusion.
(8)The Thermal Oil Heater is widely used in light and pharmaceutical industriesproduction.
- Size: 16
- Place of Origin: Shandong
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: WDR
- Weight: 580.000 kg
Type Specification | WDR 0.036 | WDR 0.06 | WDR 0.12 | WDR 0.18 | WDR 0.24 | WDR 0.30 | WDR 0.36 | ||
Heating Power (kw) | 36 | 60 | 120 | 180 | 240 | 300 | 360 | ||
Heat Output (×10³Kj/h) | 129 | 216 | 432 | 648 | 864 | 1080 | 1296 | ||
Highest Operation Temperature | 300 | ||||||||
Temperature Control Accuracy | ±5 | ||||||||
Thermal Efficiency (%) | >90 | ||||||||
Design Pressure (Mpa) | 0.7 | ||||||||
Oil Cycle (m³ / h) | 10 | 18 | 18 | 18 | 30 | 30 | 45 | ||
Motor Power (Kw) | 2.2 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | ||
Connecting Pipe (DN) (mm) | Output | 32 | 50 | 50 | 50 | 65 | 65 | 80 | |
Circuit | 32 | 50 | 50 | 50 | 65 | 65 | 80 | ||
Dimensions(mm) | 1785× 560× 1420 | 2000× 550× 1440 | 2000× 800 ×1440 | 200× 800× 1760 | 2000× 900× 1910 | 2000× 940× 2145 | 2000× 940× 2328 | ||
Weight(Kg) | 375 | 495 | 662 | 840 | 1018 | 1350 | 1705 | ||
