- Size: 1-25
- Place of Origin: Shandong
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: WLD
- Weight: 1000.000 kg
Performance feature:

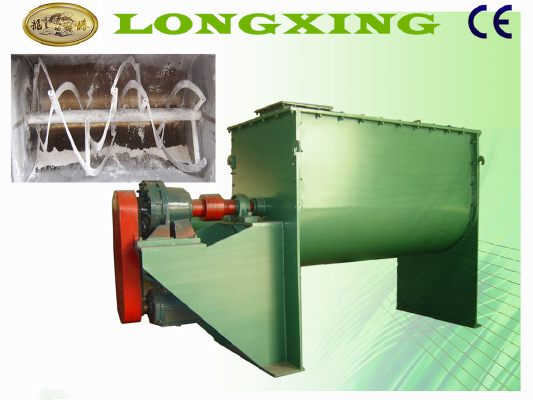

1. There are two spiral ribbons, the inside ribbon make the material move to both side of the box, and the other ribbon make the material move from the both side to the middle. Both the ribbons make the material move from side to side so as to mix them thoroughly.
2. This machine is a horizontal barrel. It has two-tier spiral ribbons .Low noise and smooth running.
3. Quick mixing, good working effect and high quality. Suit for thick material or mash.
4. It can be equipped with sprayer. And it also can be equipped with a door which is easy to clean.
- Size: 1-25
- Place of Origin: Shandong
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: WLD
- Weight: 1000.000 kg
Technical Parameter of the Mixer | ||||||||||
Model | WLD- 0.25 | WLD-0.5 | WLD-1.0 | WLD-1.5 | WLD-2.0 | WLD-3.0 | WLD-4.0 | WLD-6.0 | WLD-8.0 | WLD- 10 |
Nominal Volume | 0.25m³ | 0.5m³ | 1.0m³ | 1.5m³ | 2.0m³ | 3.0m³ | 4.0m³ | 6.0m³ | 8.0m³ | 10m³ |
Working condition | Atmosphere, Heating or Cooling | |||||||||
Uniformity | Relative deviation < 4% 15min | |||||||||
Fineness | 20-500 um | |||||||||
Stirred weight kg | 150 | 250 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
Motor kw | 4 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
