- Size: 25CBM
- Place of Origin: Shandong,China
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: SWZ
- Weight: 900.000 kg
1. Features

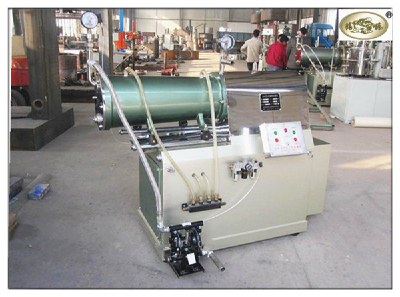

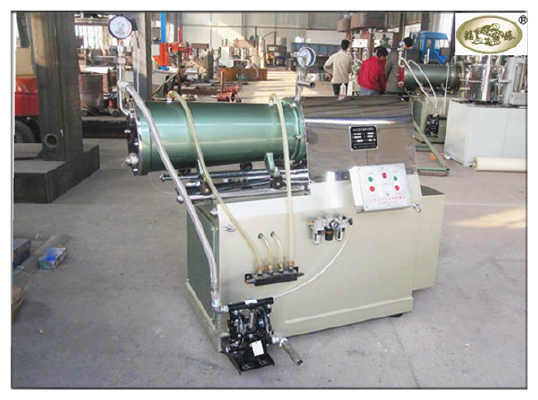

(1)The Horizontal Sand Mill is used to disperse and grind the powder-state materials for solid –liquid dispersion .
(2)The high-speed rotation of the dispersing plate keeps the grinding balls and materials suspending in the liquid, and drives the balls to grind materials fast.
(3)The Horizontal Sand Mill is best suitable for processing high viscosity products.
2. Widely use
Horizontal Sand Mill Machine is widely used in many fields. Such as:
(1)Food industry: cocoa, chocolate, Canine jams, sauces, mayonnaise, spices, etc.;
(2)Paints industry: ink, paint, glue, filler, dyes, carbon black
(3) Chemical industry: pharmaceuticals, cosmetics, plant protestants, detergents;
(4) Mining industry: kaolin (china clay), ceramic mud, fire-resistant soil.
- Size: 25CBM
- Place of Origin: Shandong,China
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: SWZ
- Weight: 900.000 kg
model | Specifications | SW15-1 | SW20-1 | SW30-1 | SW45-1 |
External dimensions | L | 1400 | 1500 | 1720 | 1800 |
W | 900 | 900 | 920 | 950 | |
H | 1570 | 1600 | 1600 | 1720 | |
Main motor power | (kw) | 15 | 18.5 | 22 | 30 |
Pump motor power | (kw) | 1.1 | |||
barrel volume | (L) | 15 | 20 | 30 | 45 |
Dispersion base speed | (r/min) | 1160 | 1160 | 1000 | 800 |
Quantity of dispersion base | Pcs | 6 | 7 | 8 | 9 |
Cooling water consumption | (m3/h) | 1.5 | 2 | ||
Viscosity | (Pa. s) | ≤10 | |||
Filling amount of grinding mediums | ≤60%-80% Of barrel volume | ||||
Feeding ability | (L/min) | 2-16 | 3-24 | ||
Weight | (kg) | 720 | 800 | 920 | 1150 |
