- Size: 6CBM
- Place of Origin: Shandong,China
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: SM
- Weight: 1800.000 kg

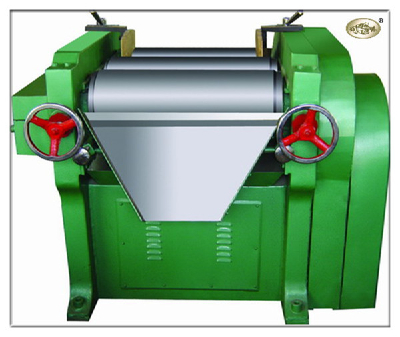

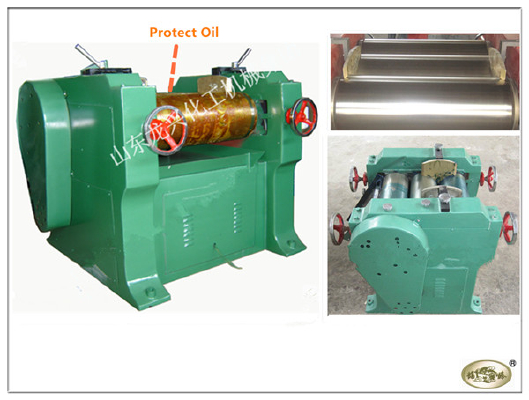

How the mill works
The material to be milled is placed between the feed and center rolls. Each adjacent roll rotates at progressively higher speeds. For example; the feed roll may rotate at 30 rpm, the center roll at 90 rpm and the apron roll at 270 rpm. Material is transferred from the center roll to the apron roll by adhesion. The dispersion is achieved by the shear forces generated between the adjacent rolls. The milled material is removed from the apron roll by a knife that runs against the roll.
widely use
The three roller mill is mainly used to grind all kinds of paints, printing ink, ink, paint pigments, paints, food, chocolate, cosmetics, medicine, and other paste materials (not including those mighe cause the corrosion of the rollers). In recent years, with the development of the cable materials, human leather plastics, soaps, and lead-producing areas ,therefore the device has become the major equipment for grinding these materials.
- Size: 6CBM
- Place of Origin: Shandong,China
- Brand Name: Shandong Longxing Chemical Machinery Group Co. Ltd
- Model Number: SM
- Weight: 1800.000 kg
Model | 65 | 120 | 160 | 260 | 315 | 405 | |
Roller Diameter(mm) | 65 | 120 | 160 | 260 | 315 | 405 | |
Length of Roller (mm) | 140 | 280 | 320 | 620 | 760 | 810 | |
Roller Speed Ratio(slow to fast) | 1:2.63:7.1 | 1:3.13:9.77 | 1:206:5 | 1:2.5:6.25 | 1:2.87:8.1 | 1:3.14:9.77 | |
Low Speed(r/min) | 30 | 23 | 35 | 25 | 17.5 | 14.39 | |
Medium Speed(r/min) | 79 | 72 | 72 | 63 | 50 | 44.39 | |
High Speed(r/min) | 210 | 225 | 175 | 157 | 142 | 136 | |
Motor Type | single-phase | Y90L-6 | Y132S-8 | Y160L-8 | Y180L-8 | Y200L-8 | |
Motor Power(Kw) | 0.55 | 1.1 | 2.2 | 7.5 | 11 | 15 | |
Motor Rotation Speed(r/min) | 1400 | 910 | 710 | 720 | 730 | 730 | |
Overall Dimensions(mm) | L | 400 | 800 | 780 | 1330 | 1560 | 1700 |
W | 450 | 700 | 840 | 1300 | 550 | 1860 | |
H | 430 | 700 | 820 | 1120 | 1200 | 1400 | |
Weight (Kg) | 80 | 320 | 500 | 1800 | 2580 | 4200 |
